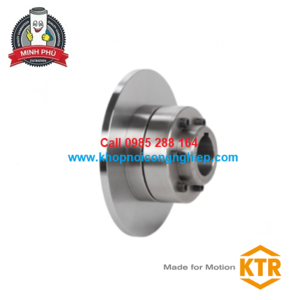

POLY-NORM ADR-SBA shaft coupling with brake disk

Mã sản phẩm : POLY NORM ADR-SBA

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

• The torsionally flexible shaft coupling POLY-NORM® ADR-SBA is a shaft coupling combined with a brake disk. The POLY-NORM type ADR-SBA is intended for holding brakes. • Please note with combinations of shaft couplings with brake disk the high circumferential speed that may result. We recommend dynamic balancing with high-speed drives from 30 m/s. The brake disk is positioned on the driven side where the highest mass moment of inertia is effective.

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

Applications of our torsionally flexible, fail-safe shaft coupling with brake drum (drum brake):
• This POLY-NORM® ADR-SBA combination of coupling and brake disk is used wherever holding brakes are required, e. g. conveyor belts and generators.
• Applications with minor specifications can be combined with POLY-NORM GJL hubs.
Operation of fail-safe shaft coupling:
• The POLY-NORM shaft coupling consists of two hubs half the cams of which are each inserted in the tailor-made free spaces of the other hub.
• This compact design of the shaft coupling allows to connect the shafts with a particularly short shaft distance dimension. The elastomer positioned between the cams transmits the torques while compensating for any kind of displacement.

Variation of components of fail-safe shaft coupling:
• High adaptability with low variance through an optimally differentiated construction kit system: The elements within one size of POLY-NORM® shaft coupling can easily be combined with each other. This allows to realize various shaft distances with the same basic component.

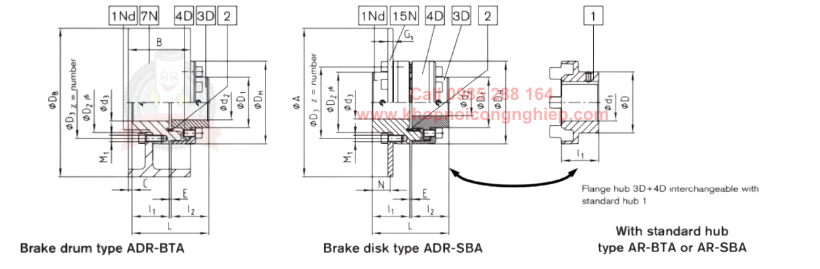

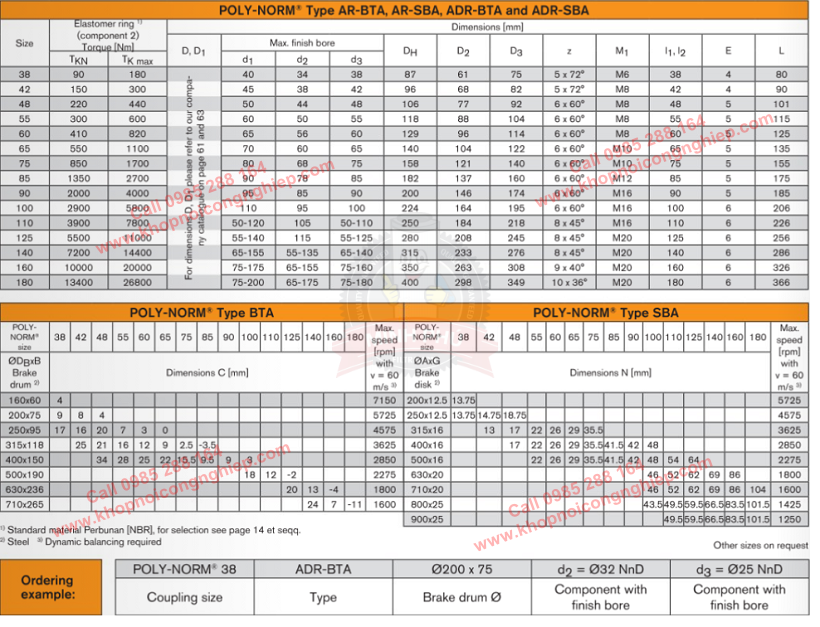

Size parameter KTR POLY NORM ADR-SB:

CATALOGUE THE COUPLING KTR POLY NORM ADR-SB
