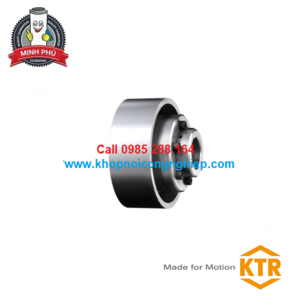

POLY-NORM ADR-BTA shaft coupling with brake drum

Mã sản phẩm : POLY NORM ADR-BTA

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

• The torsionally flexible shaft coupling POLY-NORM® ADR-BTA is a shaft coupling provided with a brake drum based on the plant. The POLY-NORM type ADR-BTA is intended as a holding brake. • With combinations of shaft coupling with brake drum the high circumferential speed that may result. With high-speed drives KTR recommends dynamic balancing from 30m/s. The brake drum is positioned on the driven side where the highest mass moment of inertia is effective.

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

Applications of our torsionally flexible, fail-safe shaft coupling with brake drum (drum brake):
• This POLY-NORM® ADR-BTA combination of coupling and brake is used wherever holding brakes are required, e. g. on conveyor belts and generators. Applications with minor specifications can be combined with POLY-NORM GJL hubs.
Operation of fail-safe shaft coupling:

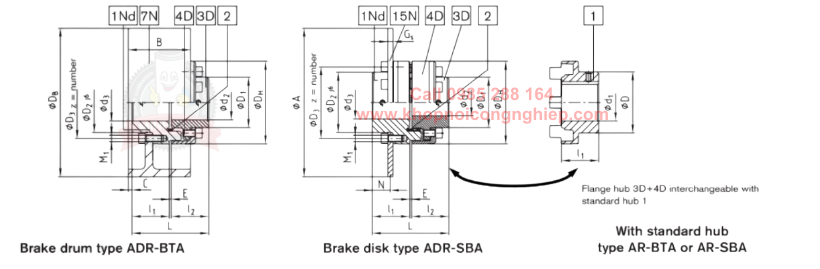

• The POLY-NORM shaft coupling consists of two hubs half the cams of which are each inserted in the tailor-made free spaces of the other hub.
• This compact design of the shaft coupling allows to connect the shafts with a particularly short shaft distance dimension. The elastomer positioned between the cams transmits the torques while compensating for any kind of displacement.

Variation of components of fail-safe shaft coupling:
• High adaptability with low variance through an optimally differentiated construction kit system: The elements within one size of POLY-NORM® shaft coupling can easily be combined with each other. This allows to realize various shaft distances with the same basic component.

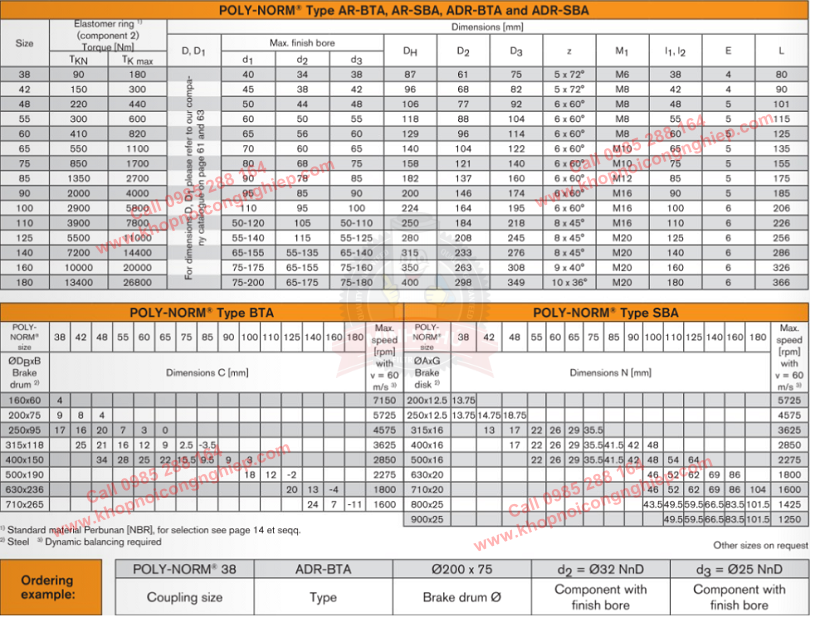

Size parameter KTR POLY NORM ADR-BTA:

CATALOGUE THE COUPLING KTR POLY NORM ADR-BTA
