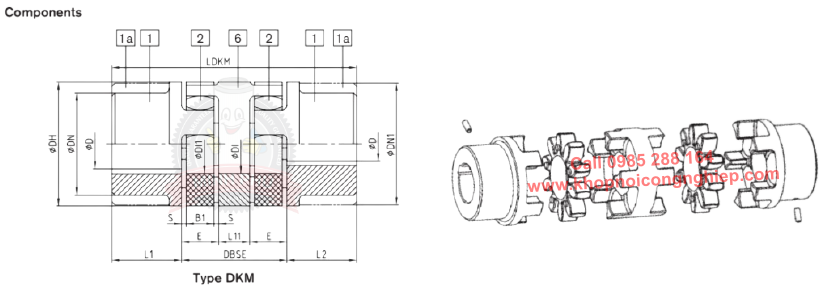

ROTEX DKM double-cardanic coupling

(1 đánh giá)

Mã sản phẩm : KTR ROTEX DKM

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

The double-cardanic design of this ROTEX coupling is ideally suitable to offset larger radial displacements. In addition this double-cardanic elastomer coupling has good damping properties due to the double arrangement of T-PUR spiders (elastomers)."

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

• Thanks to the elastomer (elastomer spider) between the coupling hubs of the jaw couplings shocks respectively torsional vibrations in the drive train are damped. The high temperature-resistant spider material T-PUR® (elastomer) is available in various degrees of hardness. The torsionally flexible ROTEX couplings are used in almost every range of general machinery and plant engineering.

• Properties of torsionally flexible jaw couplings:

ROTEX shaft couplings consist of two hubs (aluminium or steel) and a spider (elastomer ring / cam ring) made of T-PUR. The different degrees of hardness of the T-PUR-spider allow to adjust the level of damping and torsional stiffness of the elastomer coupling.

• ROTEX couplings require few mounting space and thus enable easy assembly/disassembly. The numerous types provide for maximum flexibility and meet with the different mounting requirements through various types of hubs.

• Function of torsionally flexible jaw couplings:

• Jaw couplings ensure torsional vibration-damping power transmission and absorb shocks generated by machines with irregular operation.
In contrast to flexible couplings the connecting elements of which are subjected to bending and therefore to earlier wear, the flexible teeth of ROTEX® couplings (elastomers) are subjected to compressive stress only. The benefit of the elastomer coupling thus is to resist significantly higher loads.

• The elastomers become deformed with load and high speeds. Sufficient expansion space must be provided.

• All sizes of ROTEX® elastomer couplings have a maximum torsion angle of 5°. They can be mounted both horizontally and vertically.

• Material of torsionally flexible jaw couplings:

• Our elastomer material T-PUR is resistant to higher temperatures and has a considerably longer service life than common polyurethanes. From a visual point of view we marked the T-Pur material by the colours orange (92 Shore A), purple (98 Shore A) and light green (64 Shore D).

• The previous polyurethane spiders in the colours yellow, red and natural white with green marking of teeth continue to be available on request.

CATALOGUE THE COUPLING KTR ROTEX DKM
