The coupling EVOLASTIC EFH highly flexible

Mã sản phẩm : EVOLASTIC EFH

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

• The coupling type EFH/EFHP is a highly flexible flange coupling with SAE and special dimensions for mounting on I. C.-engines. This type is characterized by a connection flange made of steel and is available in six SAE flange sizes. • Subject to its torsionally soft property it serves for insulating vibrations and acoustics in the drive train.

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

• In addition to transmitting the torque the coupling compensates for axial, radial and angular misalignment while absorbing overload flexibly.
• Type EFHP can be plugged in axially and is available in seven sizes.
• Both types are available in two materials - NR and on request EPDM.
• The maximum operating temperature of the element is 90 °C (NR) resp. 110 °C (EPDM).

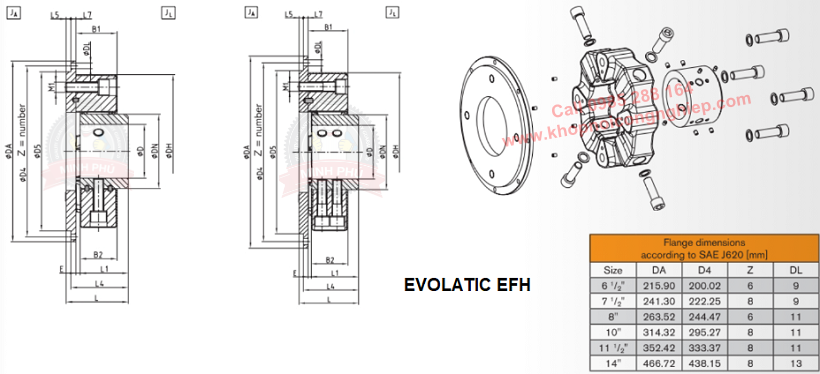

Size parameter KTR EVOLASTIC EFH:
